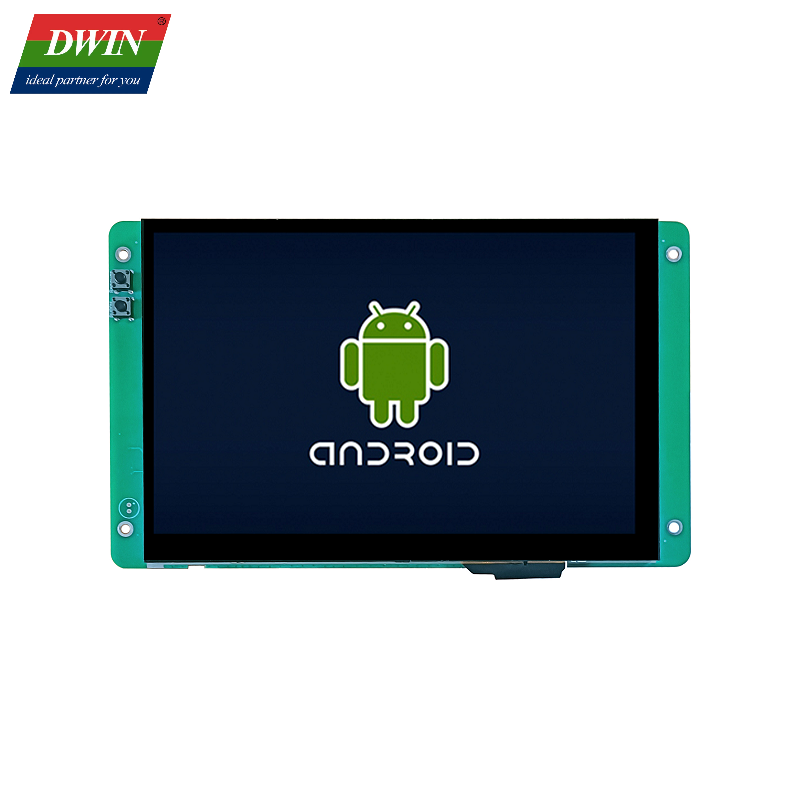

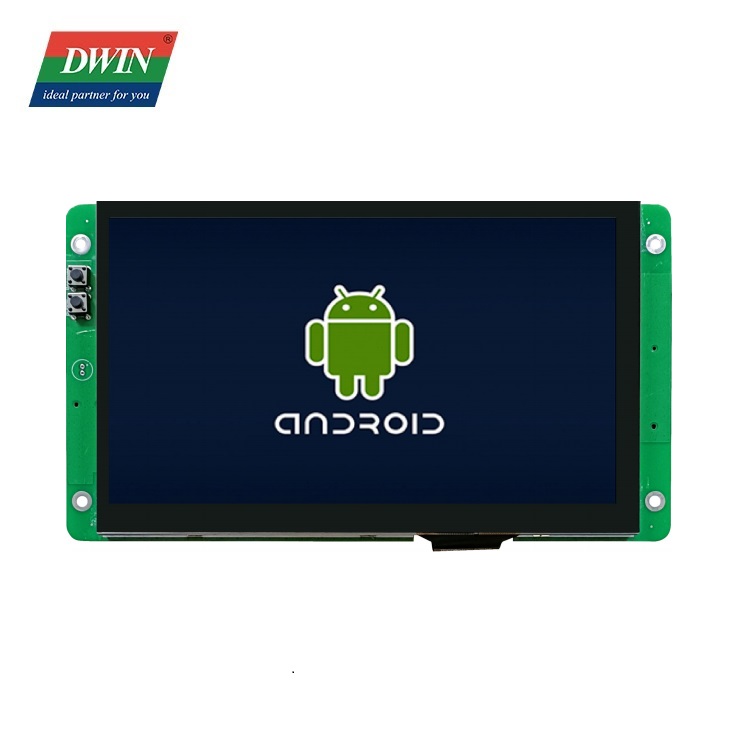

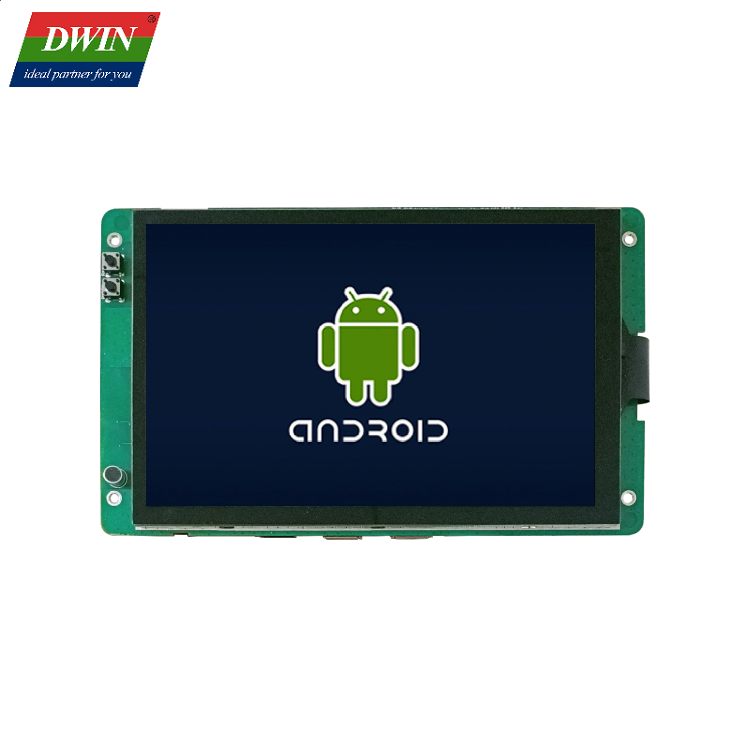

7.0 Inch 1024*600 250nit Capacitive Android Screen Touch Panel DMG10600T070_32WTC
| Master Control Parameters | |
| Motherboard level | Industrial-grade |
| CPU | RK3566, Quad-core ARM Cortex-A55, 1.8GHz Processor |
| OS | Android 11 |
| Storage | 8Gbytes eMMC |
| RAM | 2Gbytes LPDDR4 |
| Note: This model do not support using Google Play Store, if you need the Google Play Store version(2-month trial), please refer to the following model: DMG10600T070_32WTCZOS-2 | |
| Display Parameters | |
| Size | 7.0 inch |
| LCD Type | IPS, TFT LCD |
| Viewing Angle | 85°/85°/85°/85° |
| Active Area (AA) | 154.08mm(W)×85.92mm (H) |
| Resolution | 1024×600 |
| Backlight Service Life | >20000 Hrs |
| Brightness | 250nit |
| Power Supply | ||||
| Min | Typ | Max | Unit | |
| Power Voltage | 9 | 12 | 36 | V |
| Reliability Test | |||||
| Conditions | Min | Typ | Max | Unit | |
| Working Temperature | 60%RH at 12V voltage | -10 | 25 | 65 | ℃ |
| Storage Temperature | - | -30 | 25 | 80 | ℃ |
| Working Humidity | 25℃ | 0.1 | 0.6 | 0.9 | RH |
| Conformal Coating | Y | ||||
| ESD | Air: ±8KV, Contact: ±6K | ||||
| RE | Class B | ||||
| CE Certification | Y | ||||

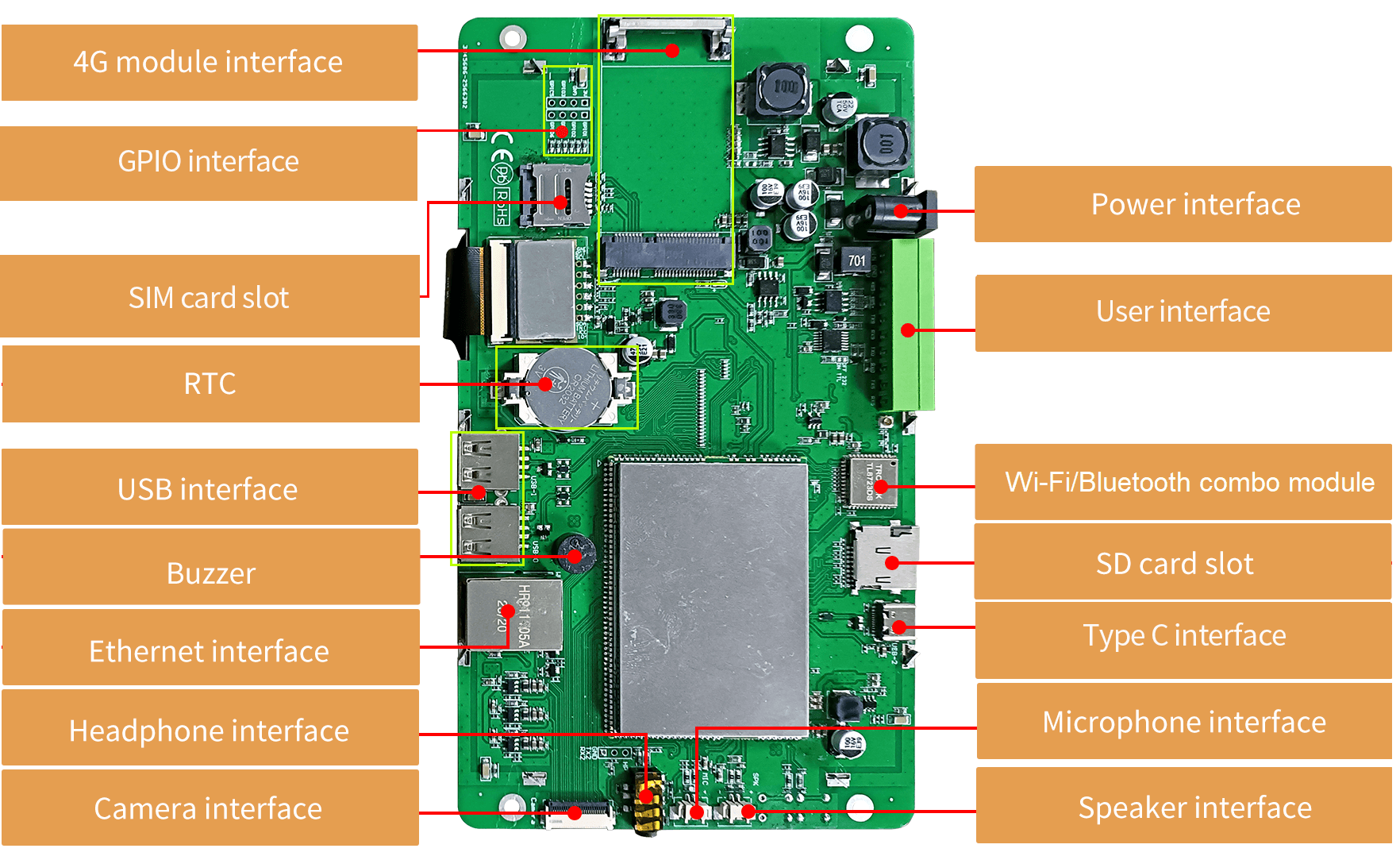

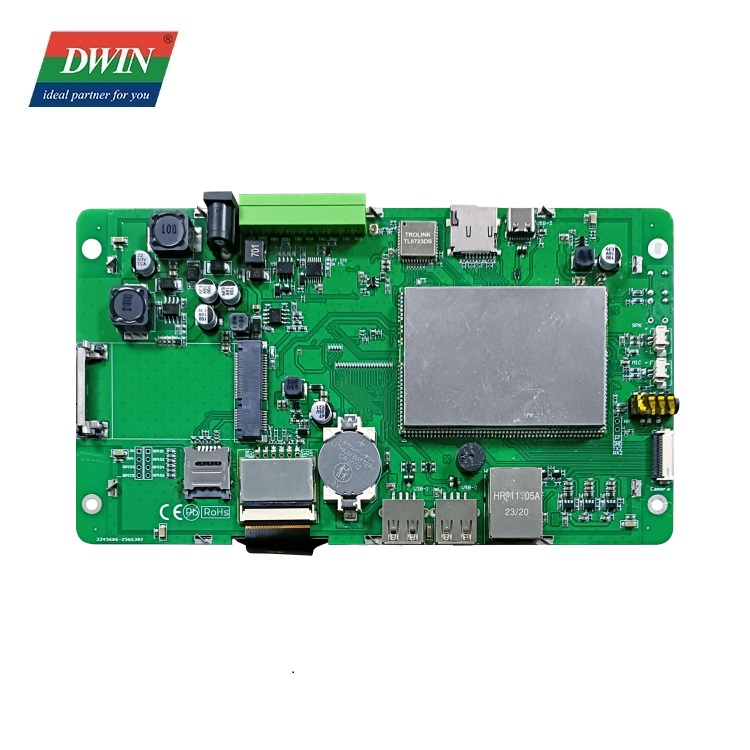

| Peripheral and Interface | |
| User Interface | 10Pin_3.81mm horizontal socket, power interface (3PIN_Φ2.0DH) |
| COM | RS232*2 (COM5 & COM9), RS485*1(COM7), RS232/TTL*1 (COM0, RS232 default), TTL*1 (COM2, debug) |
| USB | USB 2.0*2 (HOST), Type C*1 (OTG) |
| Headphone | 3.5mm spacing interface *1 |
| Speaker | 2Pin_1.25mm interface *1 |
| Microphone | 2Pin_1.25mm interface *1 |
| 4G module | Factory not configured, customizable to add |
| Camera | MIPI (24Pin_0.5mm interface) |
| SD card | Max. 64G |
| LAN | 10/100Mbps |
| Wi-Fi | IEEE 802.11Bb/g/n,2.4GHz, Wi-Fi 4 |
| Bluetooth | BT4.2 |
| RTC | Accuracy: ±20ppm @25℃ |
| GPIO Interface | GPIO*6 |
| Touch Parameter | |
| Properties | Parameters |
| Touch Type | Capacitive touch panel |
| Structure | G+G structure with tempered glass surface |
