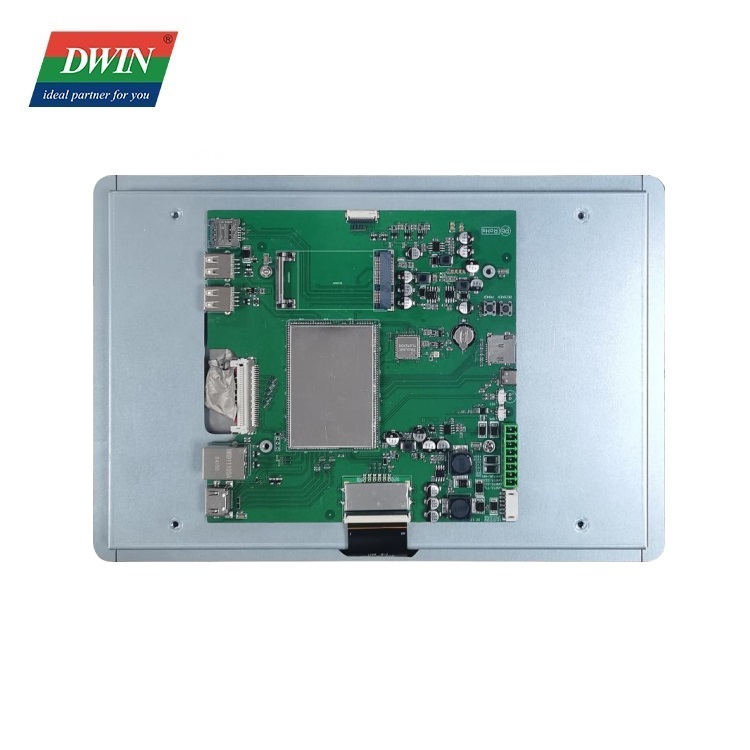

12.1 Inch 1280x800 Industrial Embedded Linux Screen Capacitive Touch Panel DMG12800T121_40WTC
| Master Control Parameters | |
| Motherboard level | Industrial-grade |
| CPU | RK3566, Quad-core ARM Cortex-A55, 1.8GHz Processor |
| OS | Linux 4.19 |
| Storage | 8Gbytes eMMC |
| RAM | 2Gbytes LPDDR4 |
| Display Parameters | |
| Size | 12.1 inch |
| LCD Type | IPS, TFT LCD |
| Viewing Angle | 85°/85°/85°/85° |
| Active Area (AA) | 261.12mm(W)×163.20mm(H) |
| Resolution | 1280×800 |
| Backlight Service Life | >20000 Hrs |
| Brightness | 600nit |
| Power Supply | ||||
| Min | Typ | Max | Unit | |
| Power Voltage | 12 | 12 | 36 | V |
| Recommended power supply:12V 1A DC. | ||||
| Reliability Test | |||||
| Conditions | Min | Typ | Max | Unit | |
| Working Temperature | 60%RH at 12V voltage | -20 | 25 | 70 | ℃ |
| Storage Temperature | - | -30 | 25 | 80 | ℃ |
| Working Humidity | 25℃ | 0.1 | 0.6 | 0.9 | RH |
| Conformal Coating | Y | ||||
| ESD | Air: ±8KV; Contact: ±6KV | ||||
| EFT | Group pulse interference±2KV | ||||
| RE | Class B | ||||
| CE Certification | Y | ||||
| Peripheral and Interface | |
| User Interface | 8Pin_3.81mm vertical socket, 6Pin_2.0mm horizontal socket |
| COM | RS232*2(COM5 & COM9), RS485*1(COM8), TTL*1(COM0) |
| Wi-Fi | IEEE 802.11Bb/g/n, 2.4GHz, Bluetooth |
| Bluetooth | 4.2GHz |
| USB | USB 2.0*2(HOST), Type C*1(OTG) |
| Speaker | 2Pin_1.25mm interface*1 |
| Microphone | 2Pin_1.25mm interface*1 |
| Camera Interface | MIPI*1 |
| 4G Module | Factory not configured, customizable to add |
| SD card | Drawer type card slot(Max 64G) |
| RTC | Accuracy: ±20ppm @25℃ |
| Ethernet | 10/100Mbps |
| HDMI | 23PIN_HDMI_SH |
| Touch Parameter | |
| Properties | Parameters |
| Touch Type | Capacitive touch panel |
| Structure | G+G structure with tempered glass surface |
