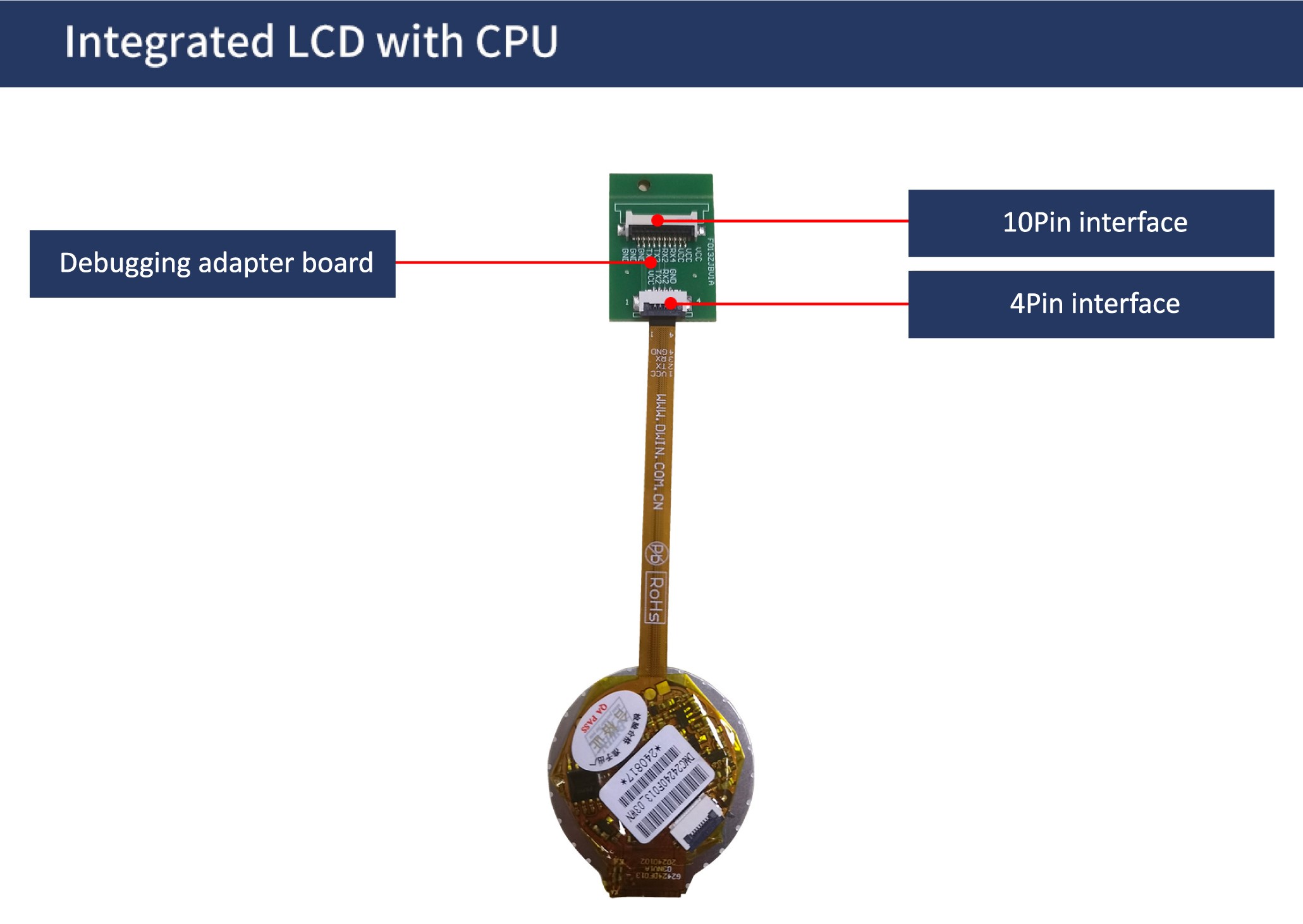

1.3 Inch 240x240 IPS TFT Circular Touch Panel LCD Display DMG24240F013_03WN(COF Series)
description2
Specification
Model No. |
DMG24240F013_03WN |
Serial Mode |
TTL*1 |
LCD Type |
IPS |
User Interface |
4Pin_1.0mm FPC |
Resolution |
240×240 |
Operating Voltage |
4.5~5.5V |
Viewing Angle |
85°/85°/85°/85° |
Operating Temperature |
-10℃~60℃ |
Active Area |
32.40mm×32.40mm |
Storage Temperature |
-20℃~70℃ |
LED Lifetime |
>20,000 h |
Rated Power |
<2W |
Brightness |
350nit |
Operating Humidity |
10%~90%RH, typical value of 60% RH |
